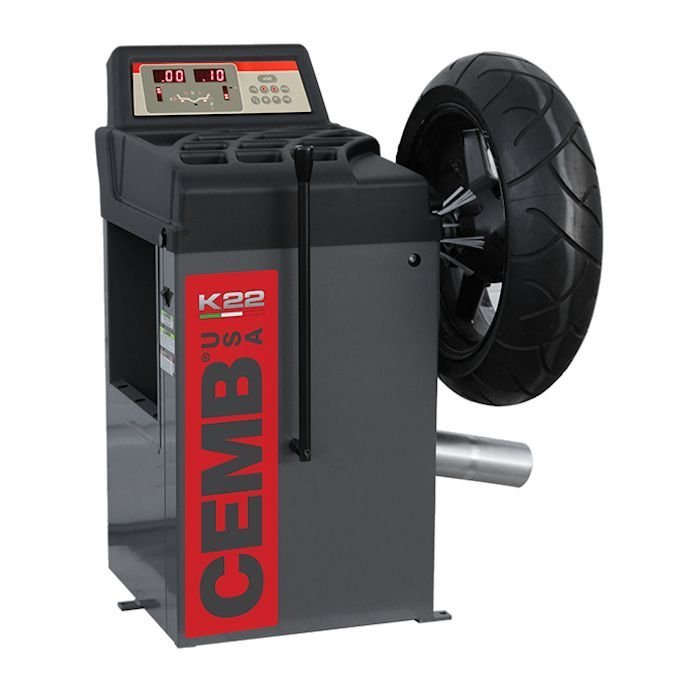

CEMB K22 Motorcycle Wheel Balancer
The CEMB K22 exclusive design saves time and provides a superior balance by eliminating the removal of wheel bearings and ensuring the wheel is centered on the motorcycle. This saves time in set up by not removing the bearings from the wheels, eliminates setup parts on the balance and provides a more accurate balance. The K22 can handle multiple applications including scooters, single swing arm wheels, and super-wide Harley wheels.
Manual Locking – Accurate wheel centering by means of a quick locknut.
Automatic Gauge – Enables to eliminate the static and dynamic unbalance by means of a single counter-weight, indicating its exact application point on the inner side of the rim.
Features and Specs
Features
- Non-rotating balancer shaft spins the wheel on its own bearings. No bulky tire clamps required.
- Drive roller spins the wheel and also allows operator to check eccentricity while balancing.
- 2D Distance and Diameter Automatic Data Entry
- Static/Dynamic Modes
- Manual Locking
- Automatic Gauge
- LED Screen
- Ergonomic Design
- Exclusive Design
- Fixed Shaft
- Multiple Applications

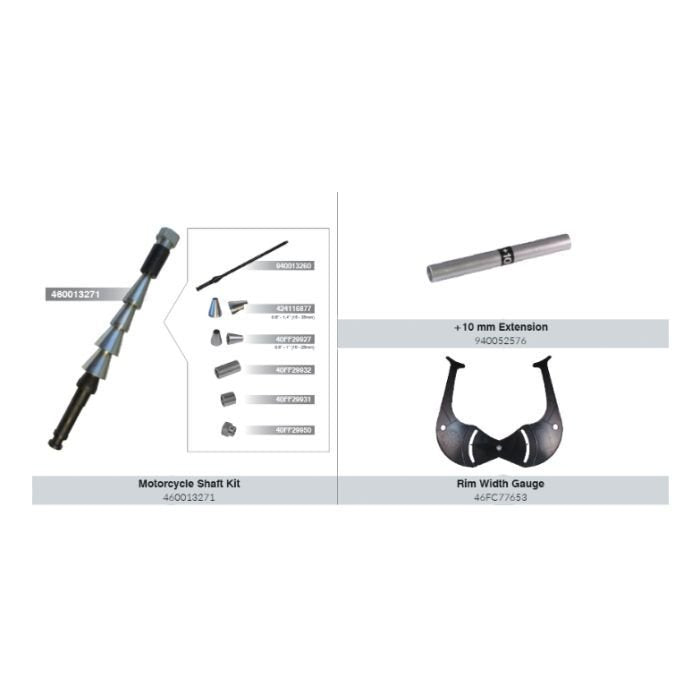

Standard Equipment
- Motorcycle Shaft Kit
- 10mm Extension
- Rim Width Gauge
Specifications
- Power Supply: 220V, 1ph
- Wheel Clamping Type: Manual
- Max. Rim Width: 20″ (510 mm)
- Max. Tire Diameter: 28″ (711 mm)
- Max. Wheel Weight: 165 lbs. (75 kg)

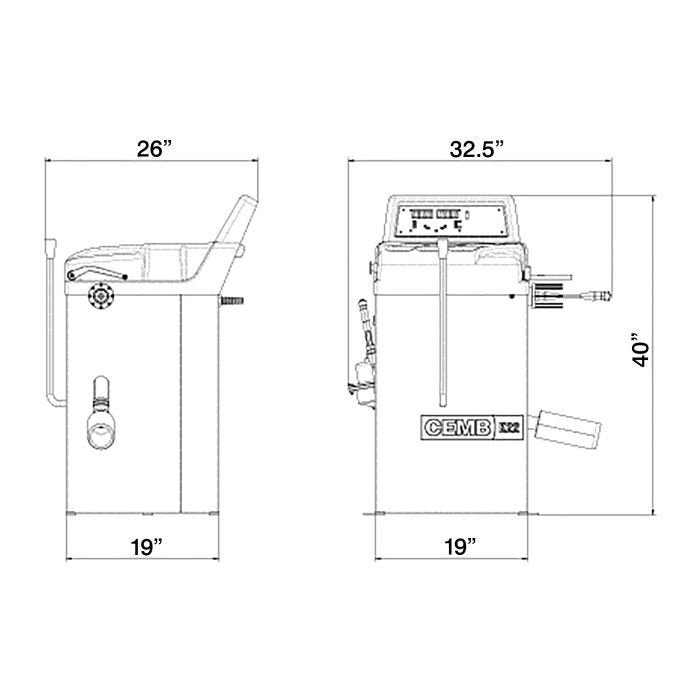

- Overall Dimensions: 40″ H x 32.5″ W x 26″ D
- Shipping Weight: 190 lbs. (86.18 kg)
- Warranty: (5) Years on Wheel Balancer Motors, (2) Years on Parts, (1) Year Labor
CEMB Limited Warranty Statement
The BL Systems Co. (hereinafter “BL”) warrants products manufactured and sold by it to be free from defects in material and workmanship for a period of 24 months parts, 60 months Wheel Balancer Motors, and 12 months labor from the date of installation, note: machine calibration is not a warranty item, except that parts sold from the repair or replacement of existing equipment will only be warranted for a period of 90 days from the date of installation.
