RUiXU Lithium Battery 51.2V | 314Ah 16kWh | IP65 Outdoor | LiFePO4 Wallmount Energy Storage | Lithi2-16 w/ Built In Wheels | 9500 Cycles | UL1973 UL9540
The RUiXU Lithi2-16 is the latest advanced Lithium Iron Phosphate (LiFePO4) battery from RUiXU, designed for efficient energy storage. This 16kWh battery system features grade A brand-new cells and is equipped with four wheels for easy mobility. It is an ideal solution for both residential and commercial applications, with an expandable capacity ranging from 16kWh to 257kWh.
Engineered for residential energy storage, the Lithi2-16 integrates seamlessly into photovoltaic systems. Operating at 48V, it includes a built-in Battery Management System (BMS) and is compatible with on-grid, backup, and off-grid inverters. Designed with the highest safety standards- UL 9540 DC ESS certification, this battery utilizes LiFePO4 chemistry and complies with international safety and transport regulations.
RUiXU Lithi2-16 Specs
- Nominal voltage: 51.2V
- Nominal capacity @ 0.2C: 314 Ah
- Min. capacity @ 0.2C: 314 Ah
- Nominal energy: 16.07kWh

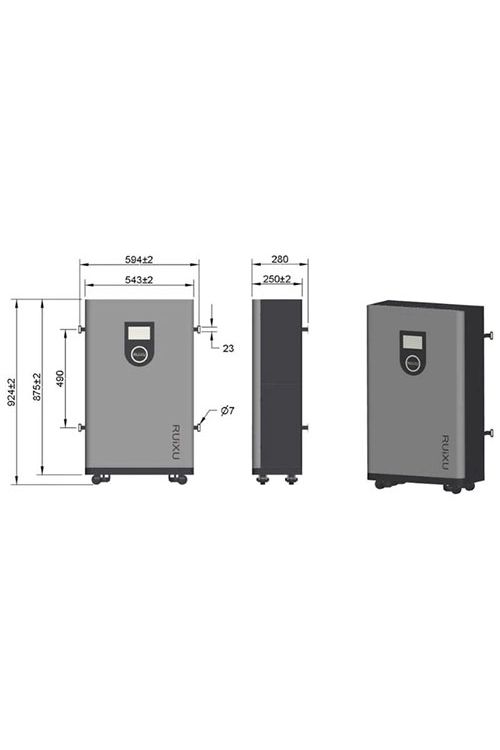

- Dimesion w/ Wheels: (HxWxD) 36.3" x 21.3" x 10"
- Weight: ~320lb
- Cycle life @ 80% DOD: ≥9500 cycles
- Operating Voltage Range: 44.8V~56.0V
- Charge voltage: 56.8V
- Recommended Charge Current: 140A
- Max Charge Current: 200A
- Recommended Discharge Current: 100A
- Max Discharge Current: 200A
- Communication: RS485/CAN

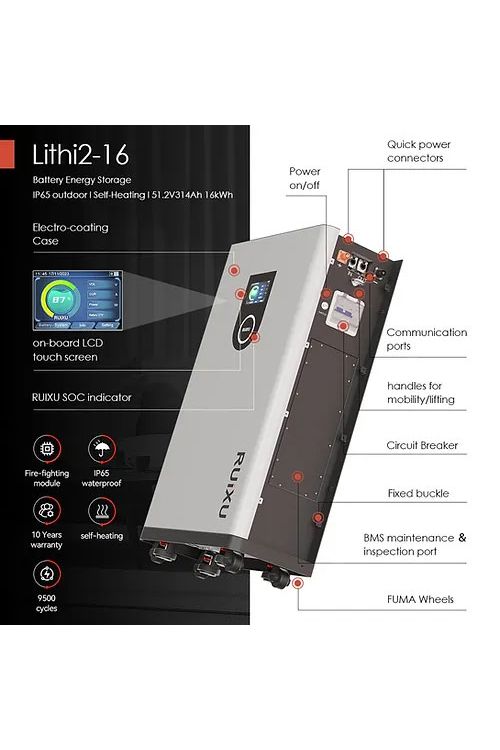

RUiXU Lithi2-16 Features

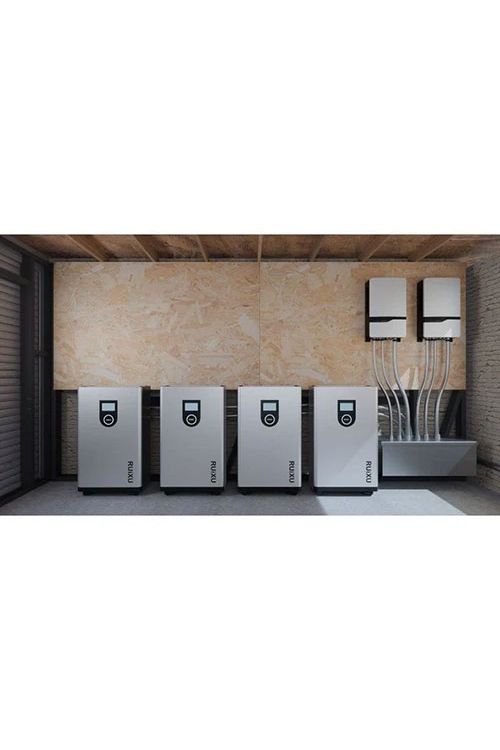

- Expandable: Support 32pcs in parallel, Expandable from 16kWh to 257kWh for both residential and commercial buildings.
- Perfluorohexane Module: A perfluorohexane module improves fire protection inside the battery pack to both electrical lines and cells.
- Electro-Coating Battery Case for Outdoor Use: Electro-coating (electrophoresis) of the battery enclosure provides excellent rust prevention for outdoor use.The electrophoretic coating process is widely used in the production of automotive body shells.
- Quick Plugs: Quick plugs provide 250A (continuous) overcurrent capacity, easy tool-less connection, long-term anti-loosening and heating protection.
- All Pole Protection: All-pole, dual protection through fuse (negative terminal) and micro circuit breaker (positive terminal).
- Fuma Wheels and Wall Mounted Fixation: Four concealed heavy-duty Fuma wheels facilitate movement of the battery without detracting from the elegant design. An anti-tipping mount on the back anchors the battery to the wall.
- Self-Heating Feature: Keeping your battery charged in cold temperatures.
- On-Board LCD Touch Screen: 5-inch capacitive touch screen provides battery information and allows easy and intuitive adjustment of battery settings.

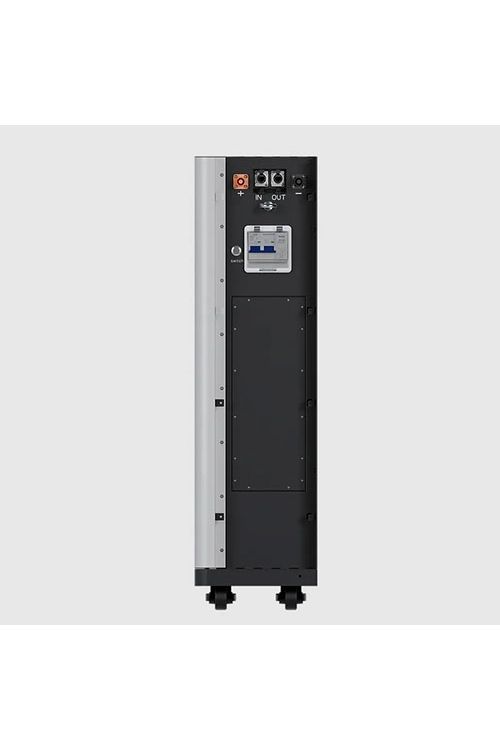

- Battery Maintenance and Inspection Port: An inspection port on the side of the battery provides access to the BMS and fuse for ease of maintenance.
- Intelligent Balancing: A double equilibrium approach achieves efficient cell balancing by calculating capacity differences between battery cells from charging-process data and by extending the balancing time, improving the efficiency and reliability compared to general passive and active balancing modes.
Your Satisfaction with RUiXU is Guaranteed:
- Limited 10-Year Warranty
- Lowest Price Guarantee
